About Us
BOSWE INDUSTRY specializes in design, production and supply of precision flanges for global industries, with brand of BORWEX, which is equipped with modern forging lines, CNC machining centers and high-speed drilling equipment, enabling us to efficiently handle large-volume orders as well as meet diverse custom specification requirements.
Respect partners, pursue long-term win-win cooperation
Uphold business ethics, refuse cutting corners and improper profits
Respect contracts and business etiquette, observe agreed rules
Keep improving technology & expertise, provide professional solutions
Honor every commitment, deliver as promised
Our Range
We manufacture a comprehensive range of industrial flanges to meet diverse project requirements across global markets.

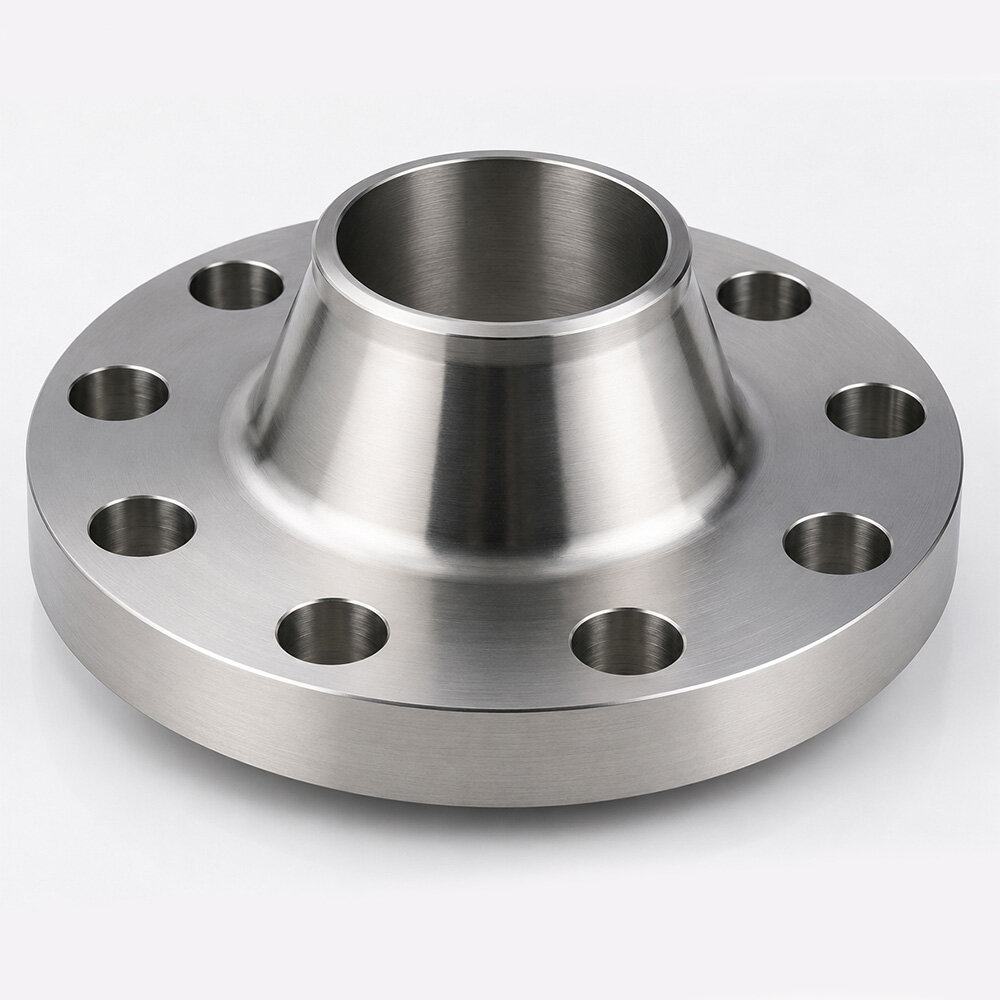

Long tapered hub connected to pipe by butt welding. The bore matches pipe ID, forming a smooth transition. The tapered hub relieves stress concentration under pressure, temperature and vibration load. It is the highest integrity flange type.

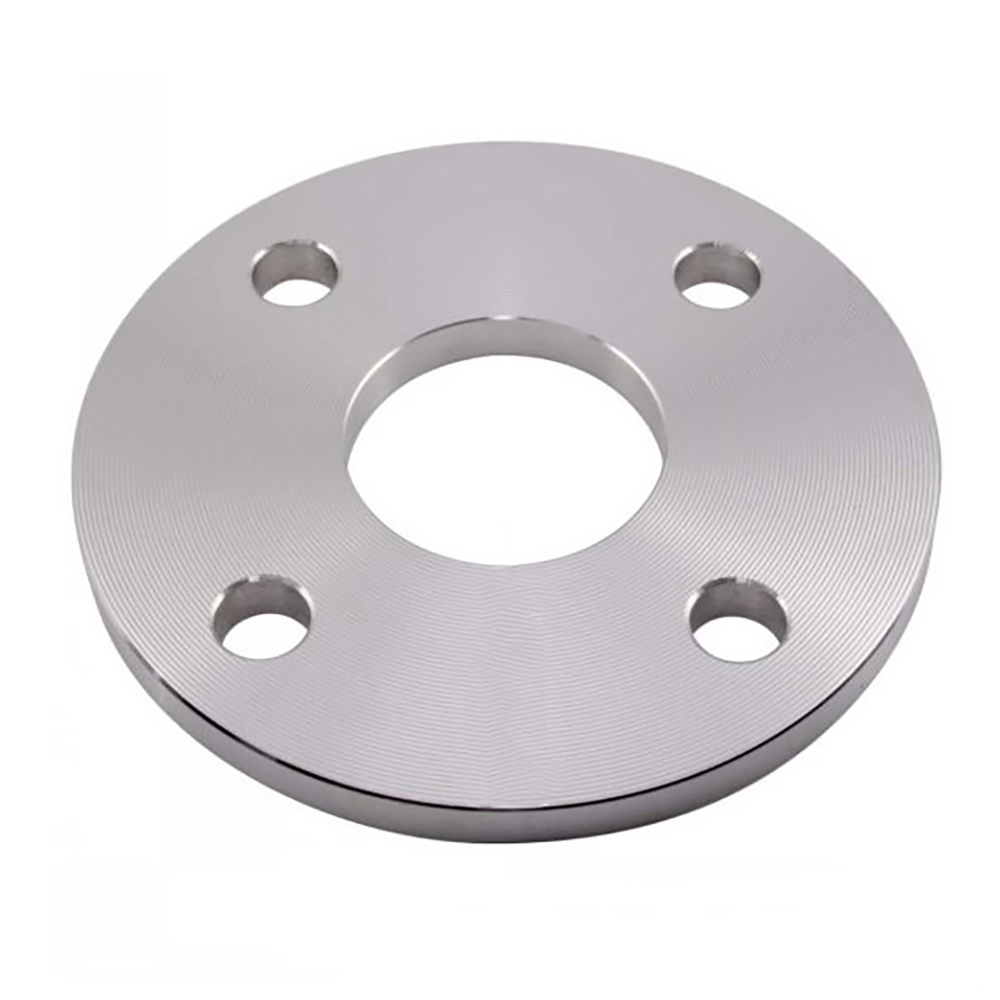

Plain flat ring without hub. Pipe is inserted into flange bore and fillet welded on both sides. Simple structure, low cost, easy fabrication. No stress relief hub, so weaker under bending and cyclic load.
With a short hub, pipe slips into flange bore and fillet welded inside & outside. Easier alignment than WN, lower cost. Strength is lower than weld neck flange; not ideal for heavy cyclic load.
Machined socket recess to receive pipe end, fillet welded externally. Normally reserved for small bore pipe (≤ NPS 2 / DN50). Smooth internal bore, good alignment. A small gap is reserved inside socket for thermal expansion.

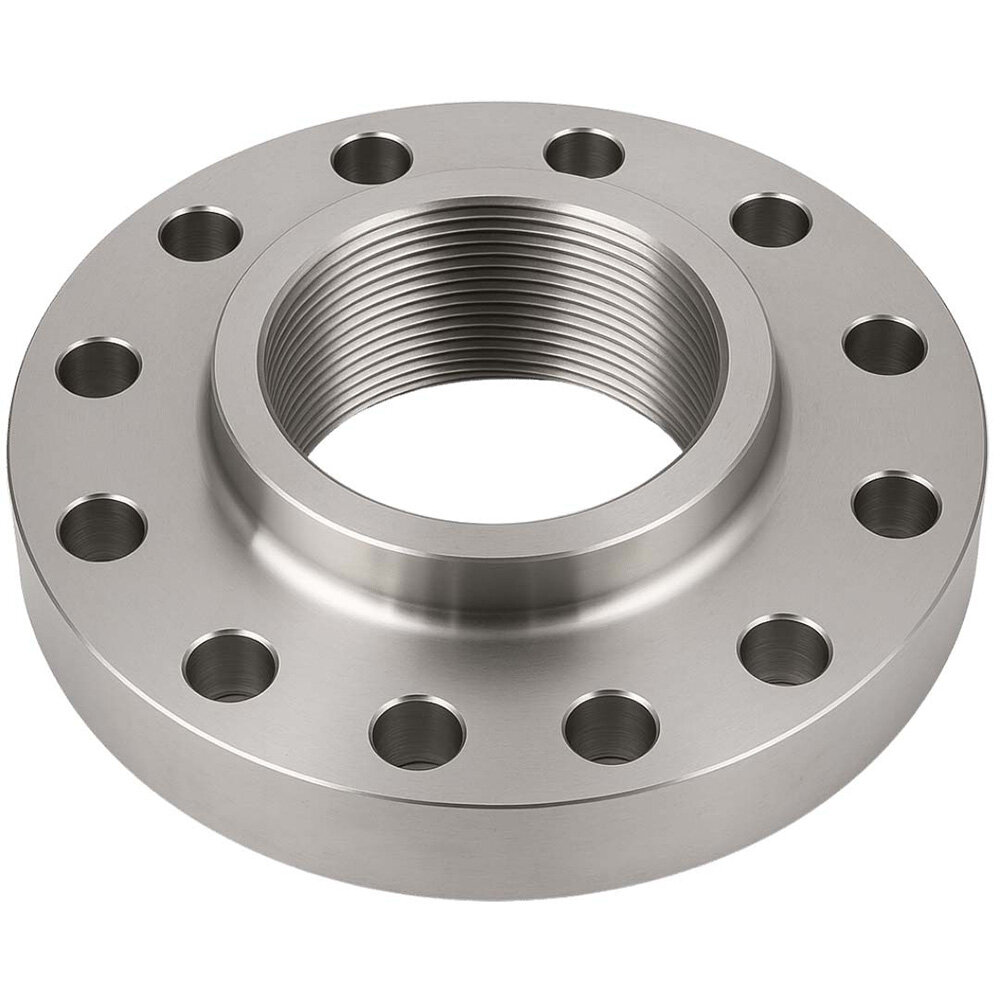

With internal tapered thread (NPT/BSP), screwed onto threaded pipe. No welding required for connection. Thermal expansion may loosen thread joint.

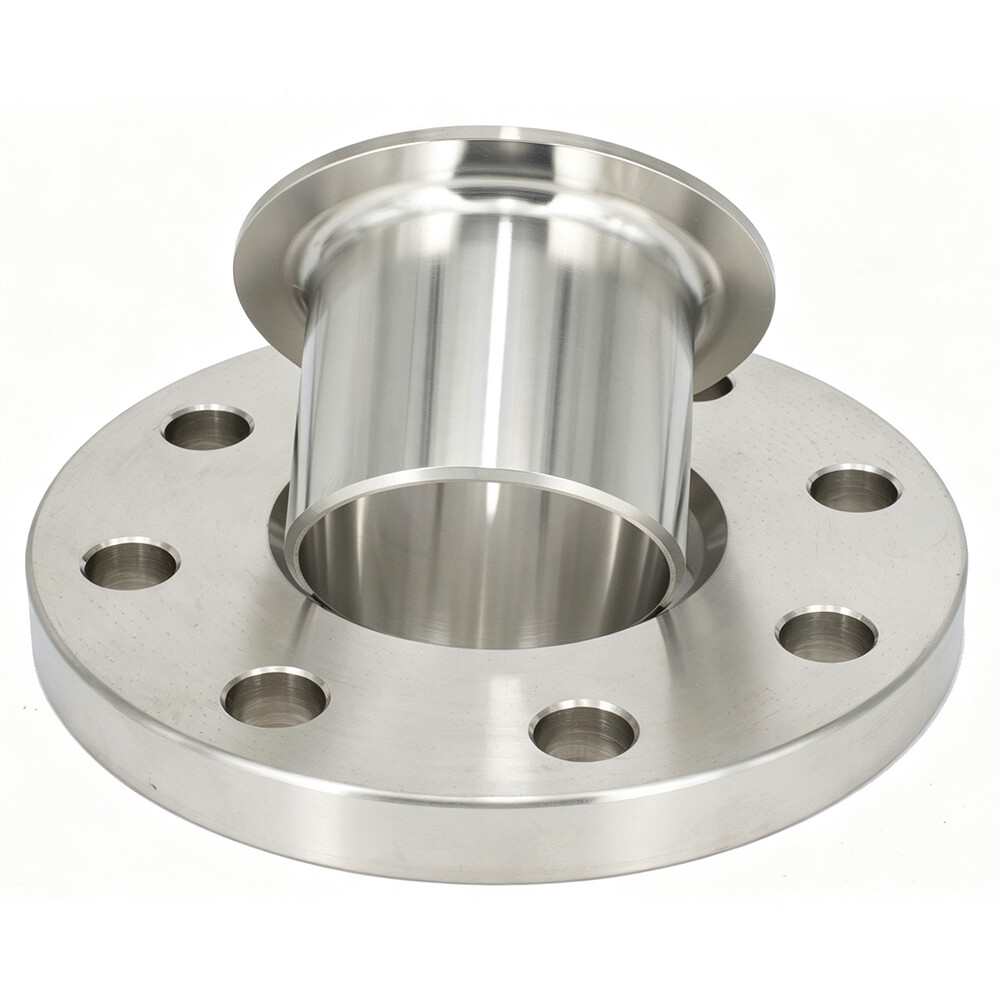

Used together with a stub end. The flange ring itself is loose and not welded to pipe; only the stub end is butt-welded to pipe. The loose flange can rotate freely to adjust bolt holes during assembly.

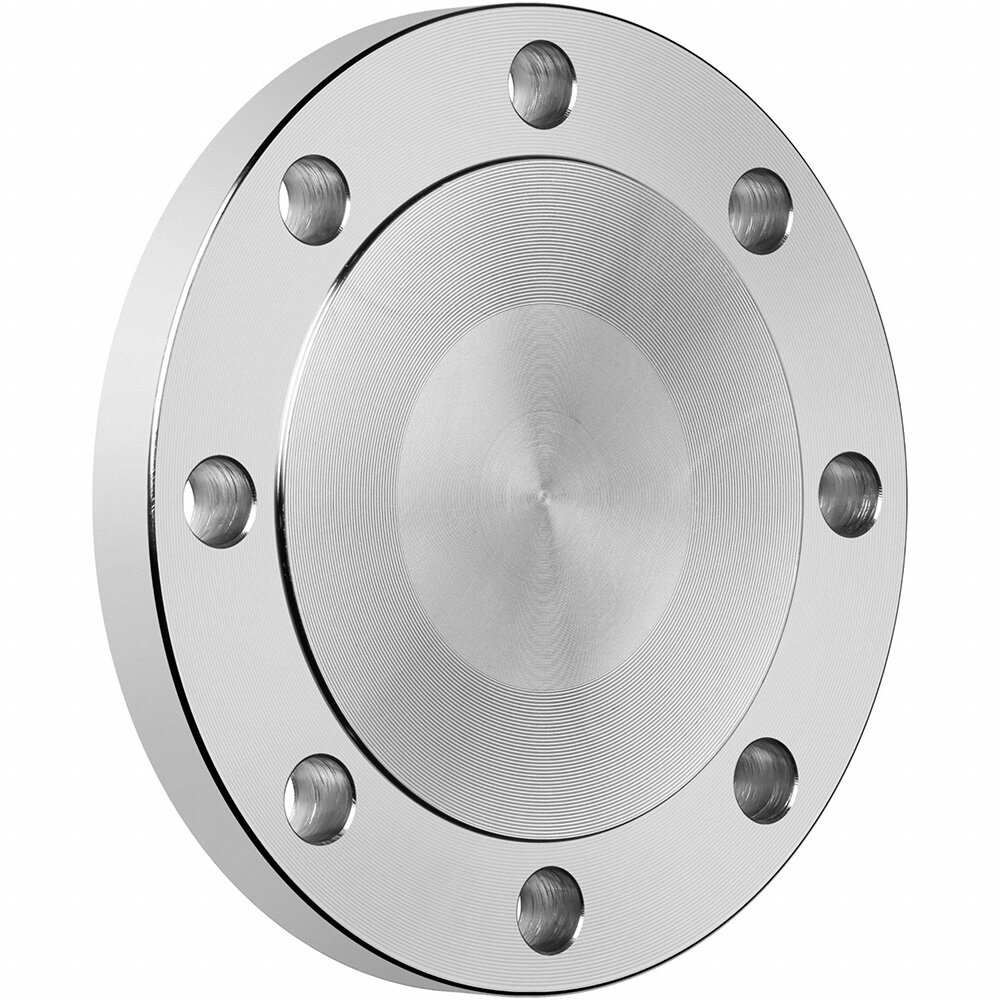

Solid disc without central bore. It bolts to flange face to seal pipe end, nozzle or vessel opening. It bears full pipeline pressure, used for isolation and blanking.

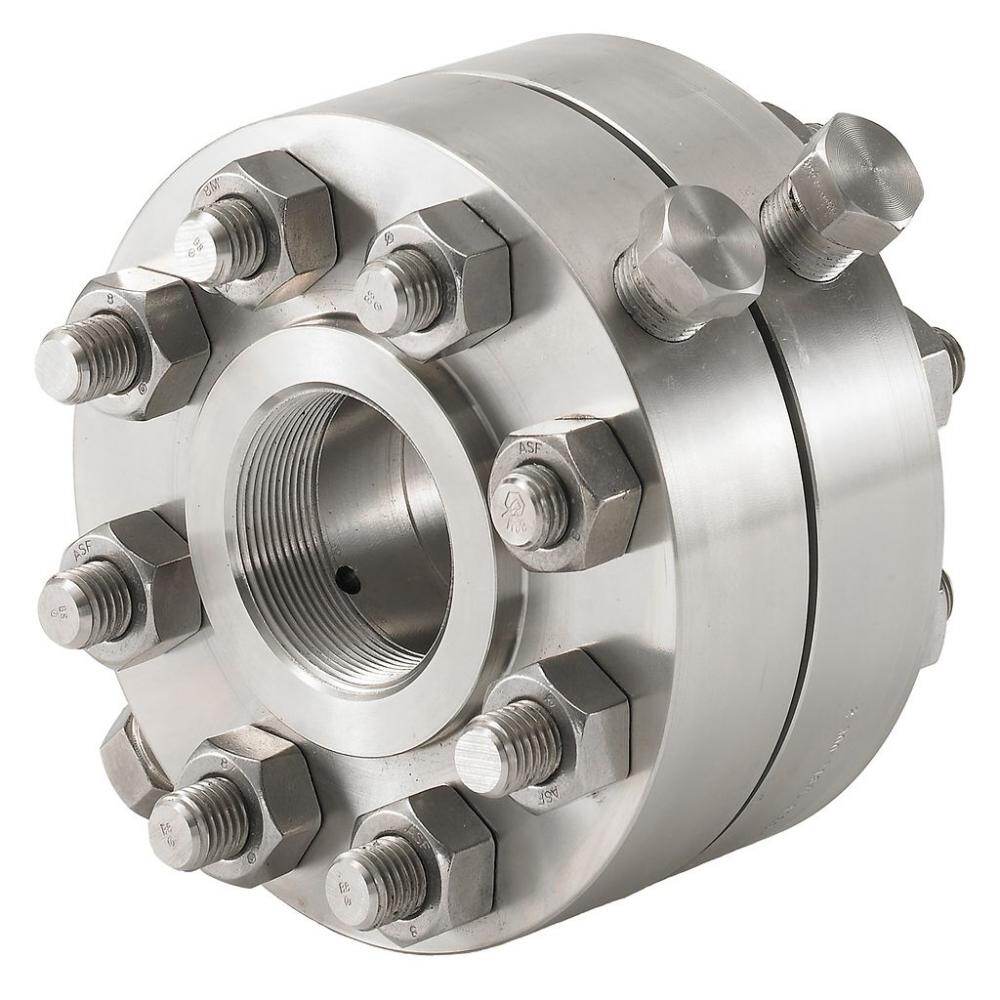

A matched flange set (usually WN or SO base) with two pressure tapping holes. An orifice plate is clamped between the pair. Differential pressure from tapping holes is measured to calculate flow rate.

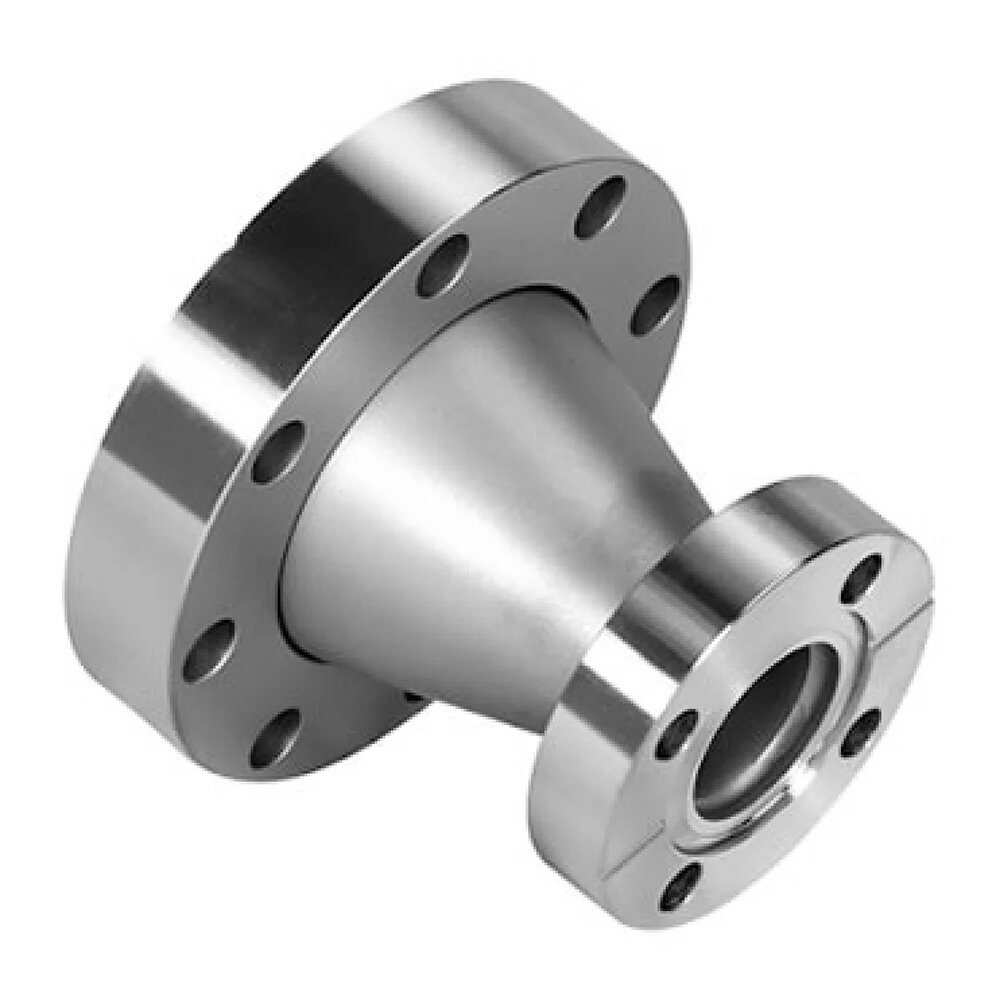

Integrated flange with different nominal sizes: flange face is one size, central bore reduces to a smaller pipe size. It combines flange + reducer into one component, saving a separate reducer fitting.
How We Make It
From raw material to export-ready product — complete manufacturing control at every step.

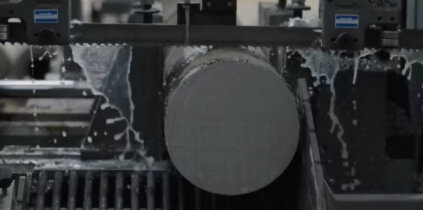

Raw Material Cutting

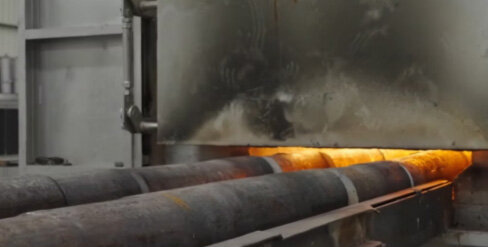

Material Feeding

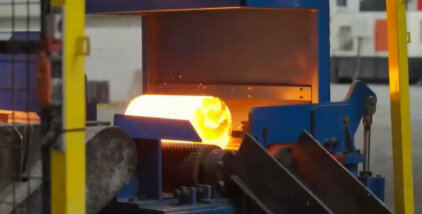

Descaling

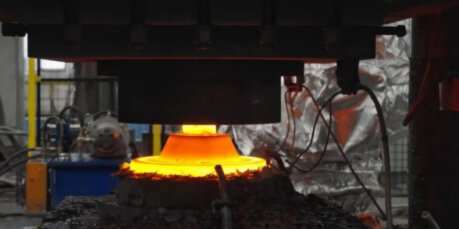

Forging

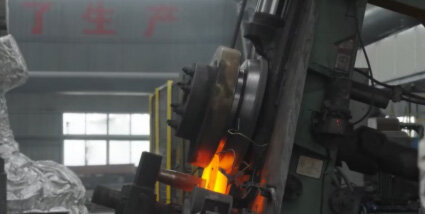

Ring Rolling Forming

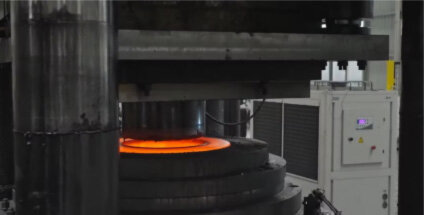

Shaping

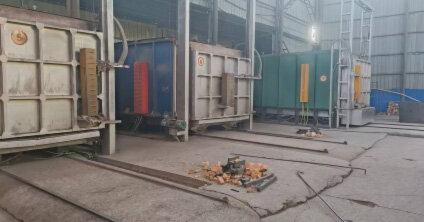

Heat Treatment

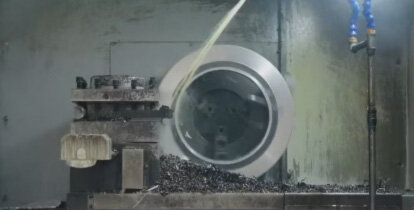

CNC Rough & Finish Machining

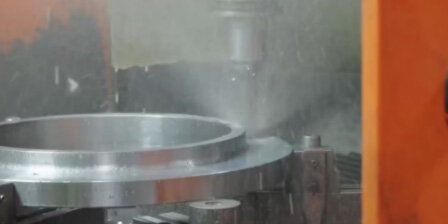

High-Speed CNC Drilling

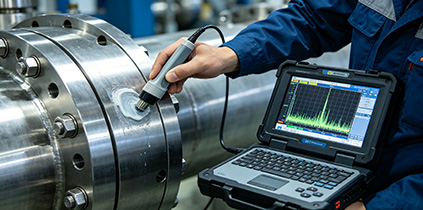

Inspection & Testing

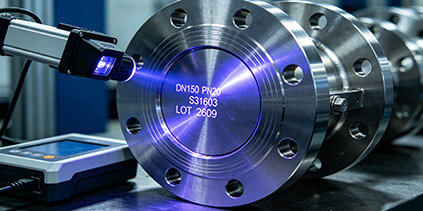

Marking

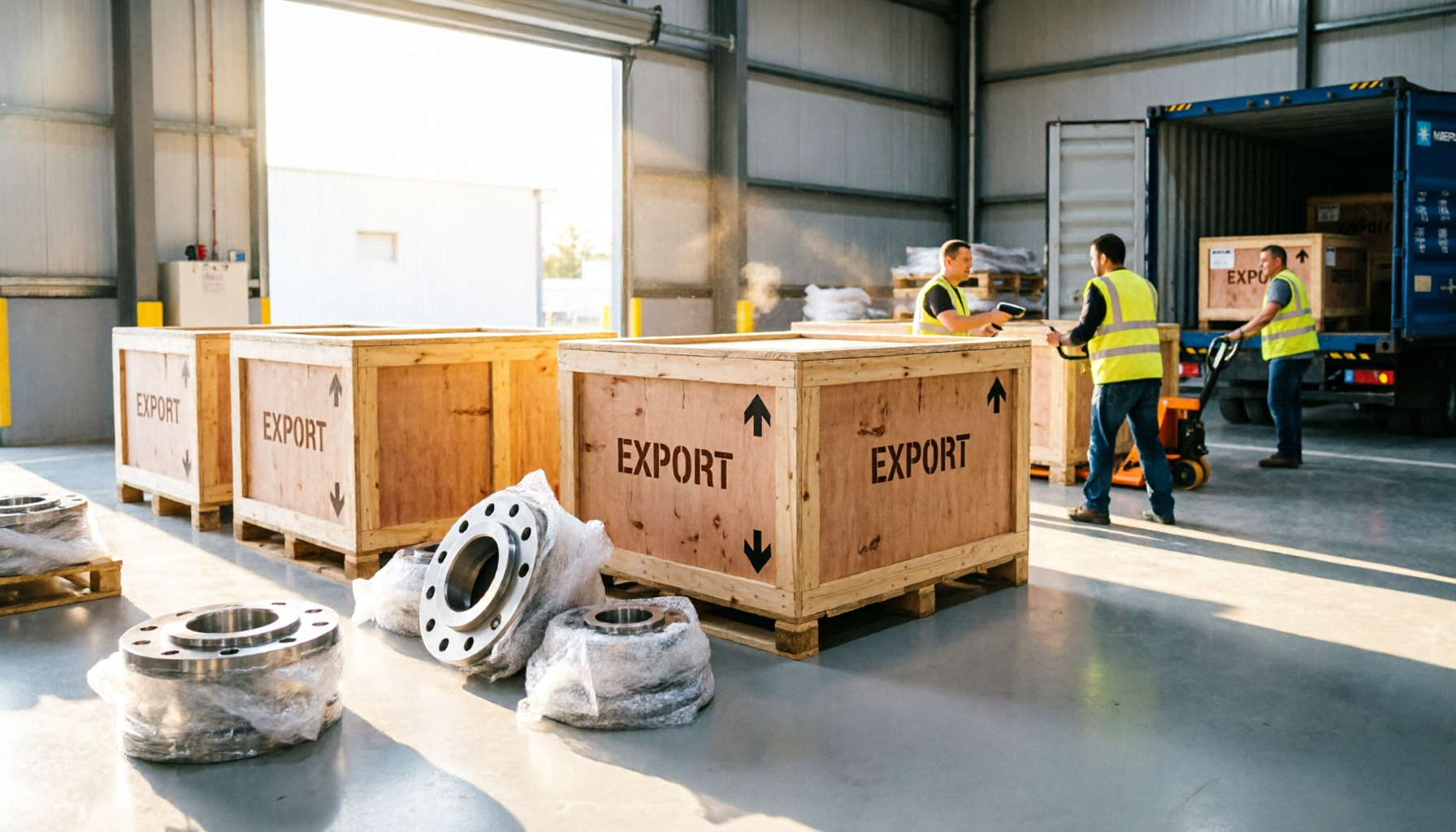

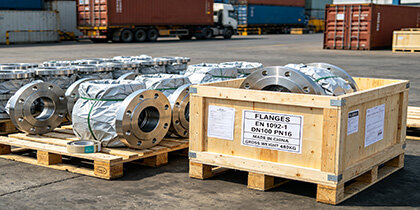

Export Packaging
Where We Serve
Our flanges are trusted in critical applications across six major industrial sectors worldwide.

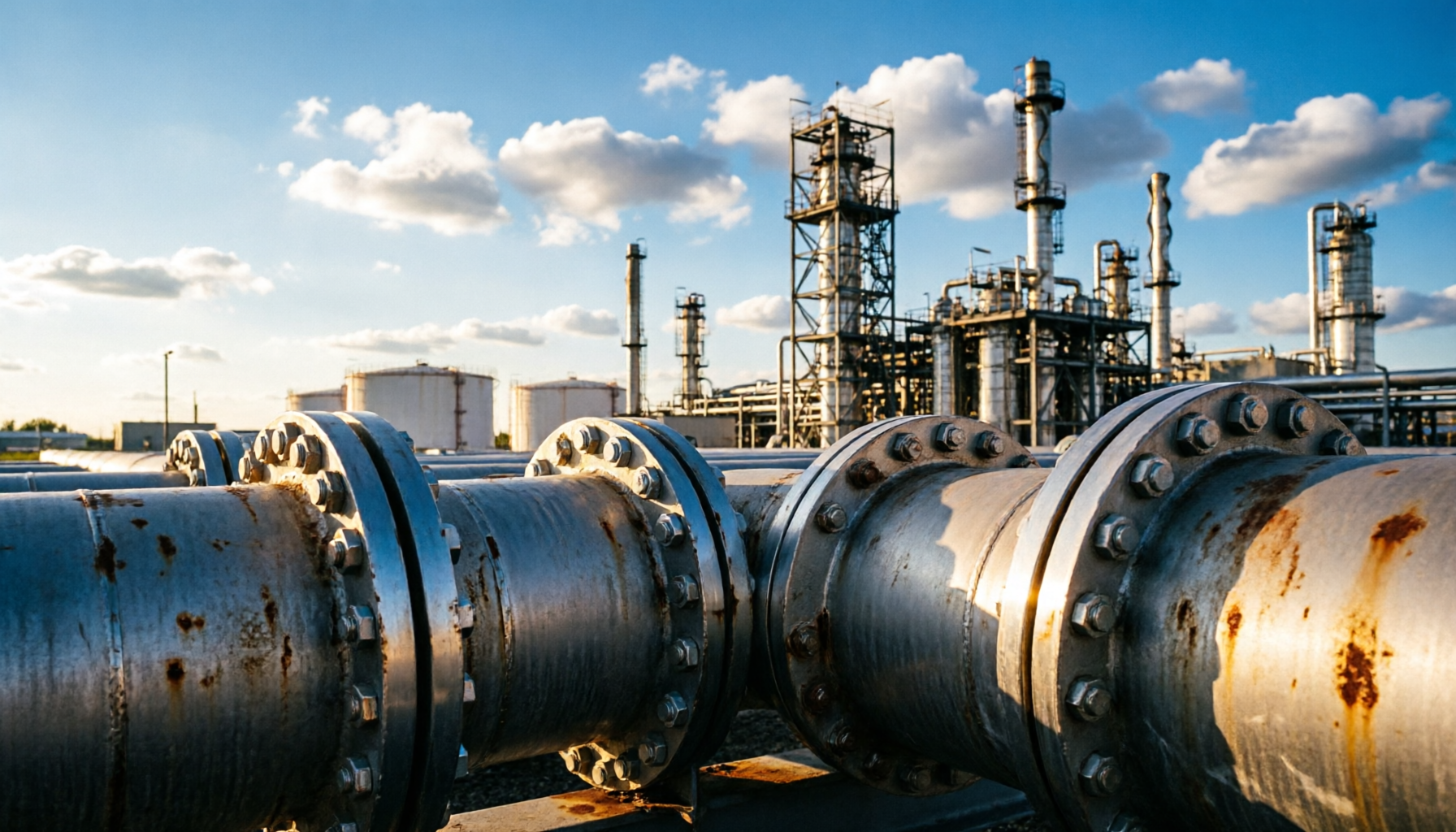

Flanges for upstream, midstream and downstream operations
Critical connections in chemical processing plants
High-pressure flanges for thermal and nuclear power
Corrosion-resistant flanges for water infrastructure
Marine-grade flanges for naval and commercial vessels
Precision flanges for industrial equipment and systems
Stay updated with the latest flange industry trends and BORWEX developments

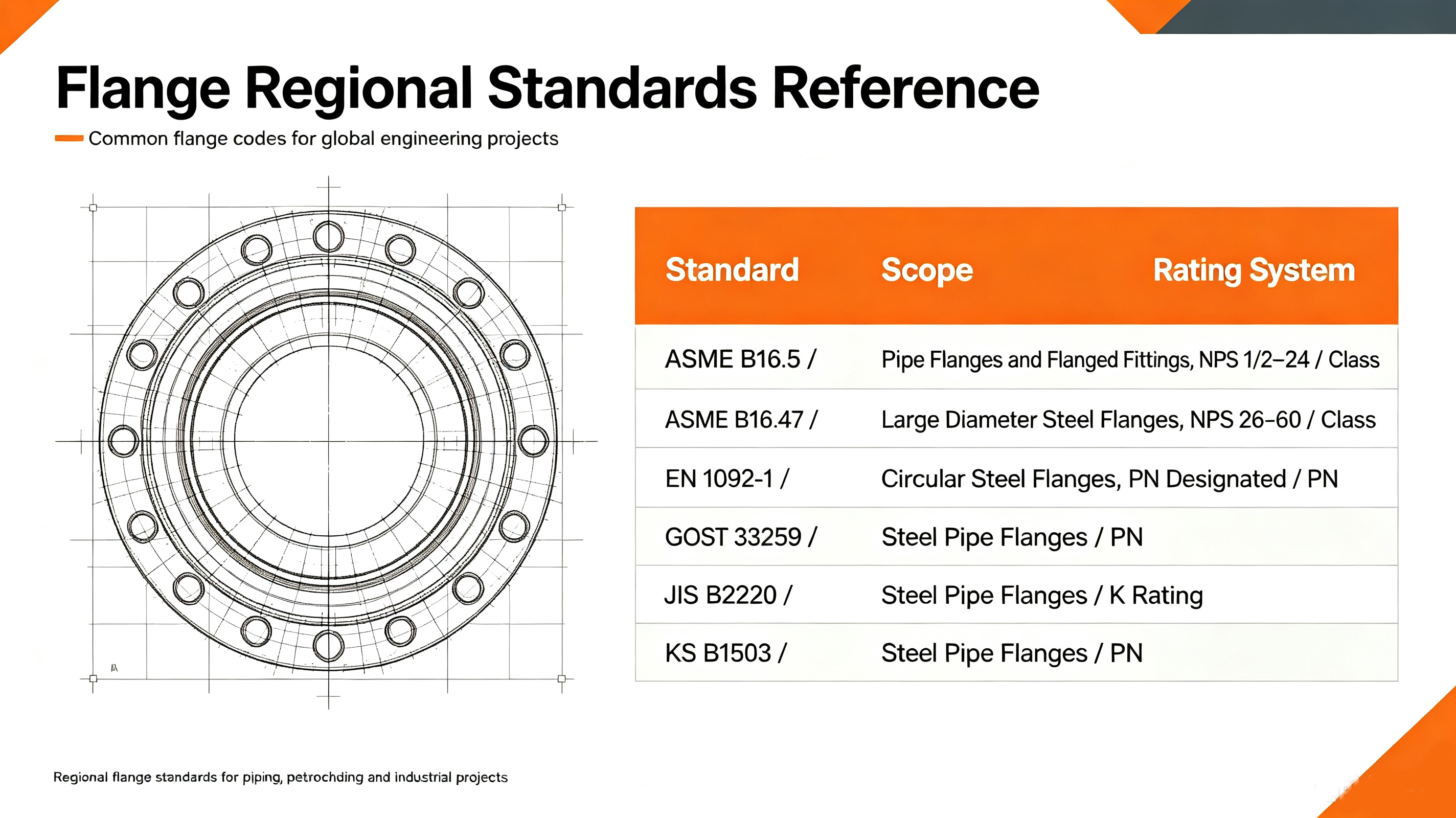

A comprehensive guide to ASME B16.5/B16.47, EN 1092-1, GB/T 9112-9124, HG/T 20592-20635, JIS B2220, GOST 33259, ISO 7005, BS 4504, MSS SP44, API 605 and the relationship between Class and PN rating systems.
Read More

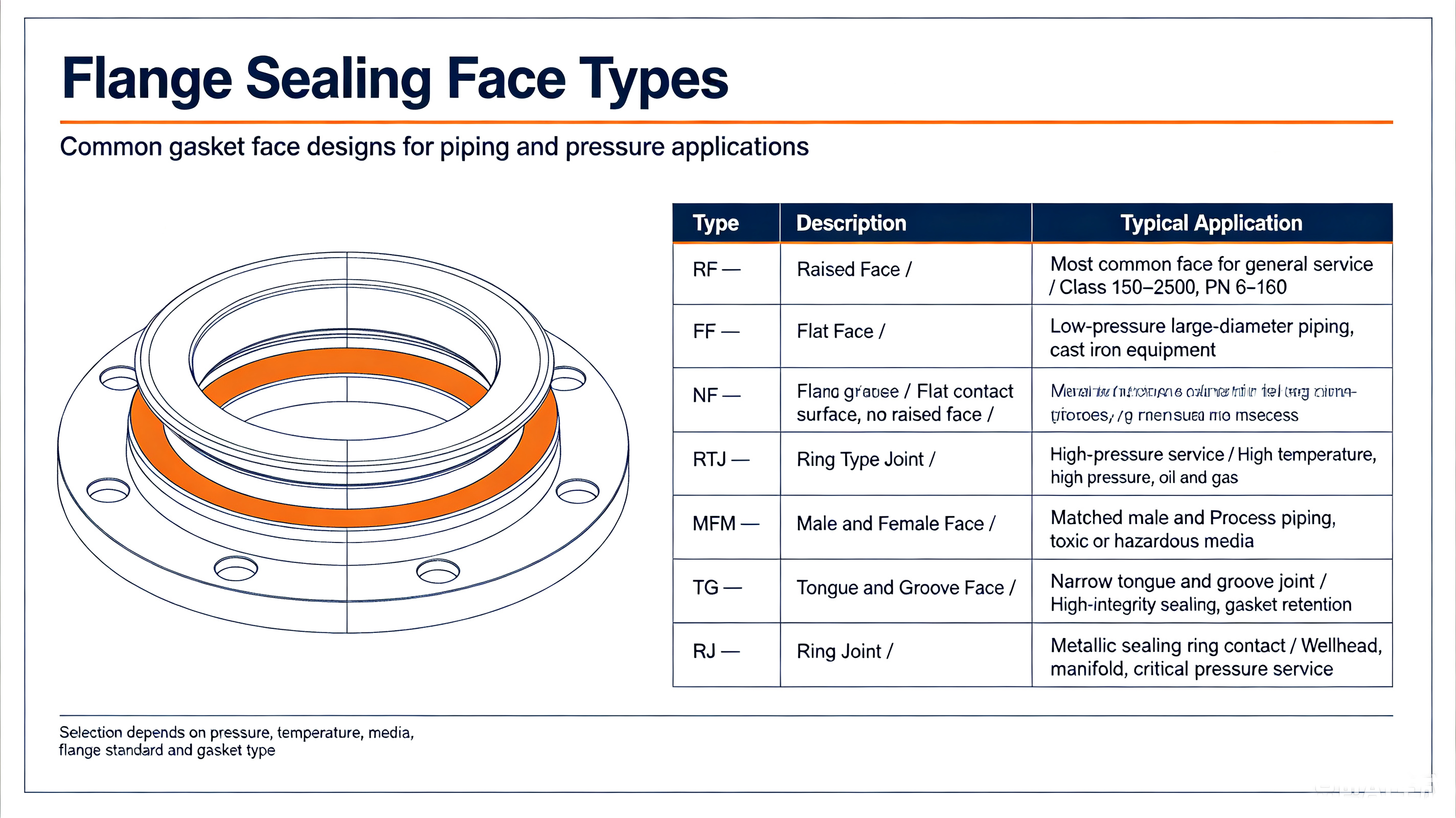

Understanding the types of flange sealing faces including RF, FF, RTJ, MFM, T&G and their engineering applications for piping and pressure systems.
Read More
Complete guide to EU PED/CE, EAEU EAC, North America ASME/API, Middle East/Southeast Asia/Africa requirements, plus ISO9001, MTR/EN10204 3.1, NDT and TS documentation.
Read MoreGet In Touch
Ready to discuss your flange requirements? Reach out to our team for quotes, technical support, or partnership inquiries.
